Description

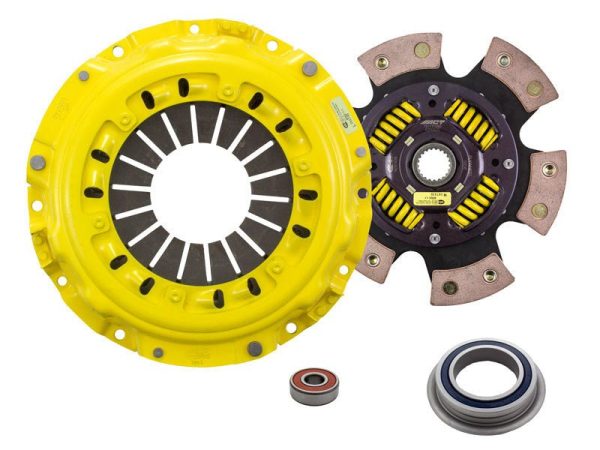

ACT HD Race Clutch Kit w Sprung 6-Pad Disc

This kit features ACT s Heavy Duty pressure plate paired with their ceramic 6-pad sprung race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT s 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

• Life: Moderate friction life, extended by ACT s exclusive diaphragm design

• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

• Recommended Use: Recommended for high horsepower street or race use

• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• Benefits

  • Torque Capacity (ft lbs): 747 ft lbs
  • Torque Capacity (% Over OE): 89%

  • Please Note: Must be used with ACT flywheel for proper clearance (flywheel not included).

    Applications

    • 1993 – 1998 Toyota Supra 3.0L Twin Turbo
    • Requires ACT flywheel for proper clearance

    • What s In The Box?

      • 1 – Heavy Duty Pressure Plate
      • 1 – Sprung 6-Pad Race Disc
      • 1 – Release Bearing
      • 1 – Pilot Bearing
      • 1 – Alignment Tool

      • References

        • Installation Instructions

        • Warranty

          • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
          • Additional information

            Title	Default Title
